Amorphous alloy cut core

Made from precision-cut iron-based amorphous ribbon, it features extremely low core loss (60-80% lower than silicon steel), high saturation flux density, and excellent high-frequency performance. Ideal for high-efficiency distribution transformers, high-frequency inductors, and new energy converters, significantly improving energy efficiency and power density.
Amorphous Cut Core

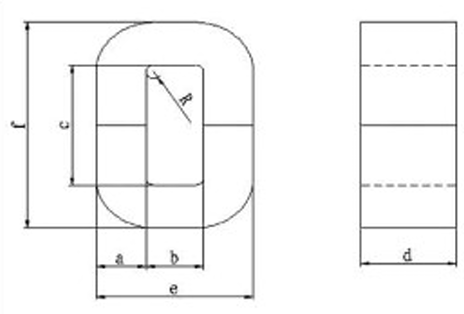

a-Core Stack Height; b-Core Window Width; c-Core Window Height; d-Core Overall Height; e-Core Overall Width; f-Core Length;
Lm-Magnetic Path Length; Ac-Effective Cross-sectional Area of Core; Wa-Core Window Area; WaAc-Core Area Product(Ap); Mass-Weight

Core Type a
(mm)		 ± b(mm)
ref		 c(mm)
ref		 d
(mm)		 ± e
(mm)		 ± f
(mm)		 ± Lm
(cm )		 Ac
(cm²)		 Wa
(cm² )		 WaAc
(cm4)		 Mass
（g)
ZH-CACC-4 9 0.5 10 32.8 15 0.5 28 1.5 50.8 1.5 11.2 1.20 3.3 3.9 97
ZH-CACC-4B 9 0.5 11 33 15 0.5 29 1.5 51 1.5 11.S 1.20 3.6 4.4 99
ZH-CACC-6.3 10 0.5 11 33 20 0.5 31 1 53 2 11.8 1.78 3.6 6.5 150
ZH-CACC-8 11 0.8 13 30 20 0.5 35 1 52 2 11.9 1.96 3.9 7.6 167
ZH-CACC-9 11 0.8 13 37 20 0.5 35 1 59 2 13.1 1.96 4.8 9.4 184
ZH-CACC-10 11 0.8 13 40 20 0.5 35 1 62 2 13.7 1.96 5.2 10.2 193
ZH-CACC-11 11 0.8 14.5 38 20 0.5 36.5 1 60 2 13.6 1.96 5.5 10.8 191
ZH-CACC-12 8 0.5 14 31 40 1 30 1 47 1.5 11.2 2.85 4.3 12.4 228

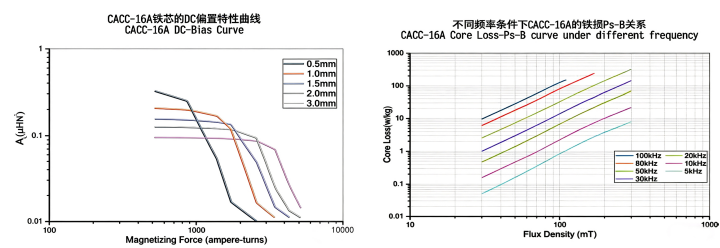

ZH-CACC-16A 11 0.8 13 40 25 0.5 35 1 62 2 13.7 2.45 5.2 12.7 241
ZH-CACC-16B 11 0.8 13 50 25 0.5 35 1 72 2 15.7 2.45 6.5 15.9 276
ZH-CACC-20 11 0.8 13 50 30 0.5 35 1 72 2 15.7 2.94 6.5 19.1 331
ZH-CACC-20B 11 0.8 13.6 50 30 0.5 35.6 1 72 2 15.8 2.94 6.8 20.0 334
ZH-CACC-20C 11 0.8 13.3 50 30 0.5 35.3 1 72 2 15.8 2.94 6.7 20.0 333
ZH-CACC-20D 11.7 0.8 14 50 30 0.5 37.4 1 73.4 2 16.1 3.17 7.0 22.2 368
ZH-CACC-20E 11 0.8 14 50 30 0.5 36 1 72 2 15.8 2.94 7.0 20.2 336
ZH-CACC-21 11 0.8 17 32 40 1 39 1 54 2 12.9 3.92 5.4 21.3 363
ZH-CACC-25 13 0.8 15 56 25 0.5 41 1 82 2 17.9 2.89 8.4 24.3 372
ZH-CACC-26 16 1 40 45 20 0.5 72 1 77 2 21.7 2.85 18.0 51.3 443
ZH-CACC-26B 16 1 20 50 20 0.5 52 1 82 2 18.7 2.85 10.0 28.5 382
ZH-CACC-30 8 0.5 20 54 40 1 36 1 70 2 17.0 2.85 10.8 30.8 347
ZH-CACC-31 10 0.5 15.4 53.6 30 0.5 35.4 1 73.6 2 16.6 2.67 8.3 22.0 318
ZH-CACC-32 13 0.8 15 56 30 0.5 41 1 82 2 17.9 3.47 8.4 29.2 447
ZH-CACC-32B 13 0.8 15.2 56 30 0.5 41.2 1 82 2 18.0 3.47 8.5 29.5 448
ZH-CACC-32C 13 0.8 15.6 56 30 0.5 41.6 1 82 2 18.1 3.47 8.7 30.3 450
ZH-CACC-320 13 0.8 15.3 57 30 0.5 41.3 1 83 2 18.3 3.47 9.0 31.3 456
ZH-CACC-32E 13.5 0.8 16 56 30 0.5 43 1 83 2 18.3 3.64 8.96 32.6 478
ZH-CACC-33 10 0.5 20 58 40 1 40 1 78 2 18.4 3.56 11.6 41 .3 470
ZH-CACC-34 15 0.8 30 60 25 0.5 60 1 90 2 22.4 3.34 18.0 60.l 536
ZH-CACC-35 13 0.8 15 61 30 0.5 41 1 87 3 18.9 3.47 9.2 31.8 472
ZH-CACC--40 13 0.8 15 56 35 0.5 41 1 82 2 17.9 4.05 8.4 34.0 521
ZH-CACC-50 16 1 20 70 25 0.5 52 1 102 3 22.7 3.56 14.0 49.8 580
ZH-CACC-60 14.4 0.8 31.2 52 30 0.5 60 1 80.8 2 20.8 3.84 16.2 62.4 574
ZH-CACC-60B 16 1 20 60 35 1 52 1 92 2 20.7 4.98 12.0 59.8 740
ZH-CACC-62 14.4 0.8 41.2 62 30 0.5 70 1 90.8 2 24.8 3.84 25.5 98.2 685
ZH-CACC-63 16 1 20 70 30 0.5 52 1 102 3 22.7 4.27 14.0 59.8 695
ZH-CACC-64 16 1 20 43 45 1 52 1 75 2 17.3 6.41 8.6 55.1 795
ZH-CACC-64B 14 0.8 20 48 45 1 48 1 76 2 17.7 5.61 9.6 53.8 710
ZH-CACC-65 16 1 20 58 45 1 52 1 90 2 20.3 6.41 11.6 74.3 933
ZH-CACC-66 15 0.8 29 60 40 1 59 1 90 2 22.2 5.34 17.4 92.9 850
ZH-CACC-66B 14.4 0.8 51.2 82 30 0.5 80 1 110.8 3 30.8 3.84 42.0 161.4 851
ZH-CACC-70 20 1 40 60 30 0.5 80 1 100 3 25.9 5.34 24.0 128.2 994
ZH-CACC-71 14.4 0.5 31.2 62 30 0.5 60 1 90.8 2 22.8 3.84 19.3 74.4 630
ZH-CACC-74 20 1 26 63 30 0.5 66 1 103 3 23.7 5.34 16.4 87.5 910
ZH-CACC-80 16 1 20 70 40 1 52 1 102 3 22.7 5.10 14.0 79.7 927
ZH-CACC-84 12 0.8 30 60 20 0.5 54 1 84 2 21.4 2.14 18.0 38.4 328
ZH-CACC-95 15 0.8 60 64 15 0.5 90 1 94 2 29.2 2.00 38.4 76.9 419
Note: The listed products represent only a portion of our standard specifications. All products can be customized to meet specific customer requirements. We welcome your inquiries at any time!
