Miniature Precision Voltage Transformer

Utilizes high-stability magnetic cores and precision winding technology to achieve accurate voltage conversion and isolation in a compact size. Suitable for energy metering, relay protection, and precision instrument power supply, it offers excellent temperature characteristics and long-term stability, meeting demanding industrial and laboratory requirements.
Precision Voltage Transformer

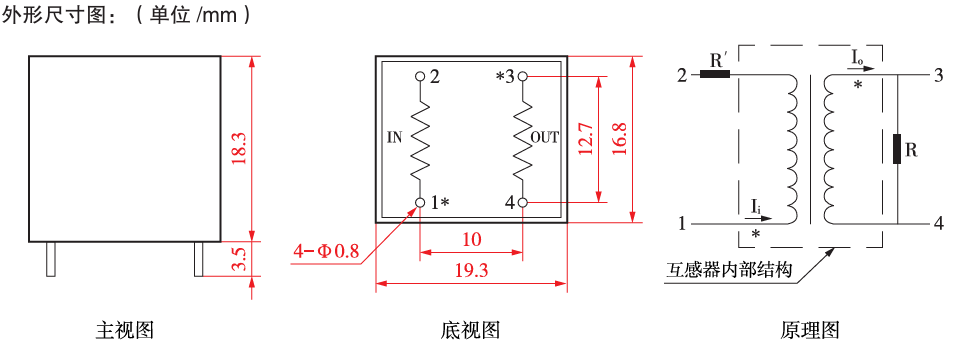

ZH-GL-PT01A Series Precision Voltage Transformers

ZH-GL-PT01A Unit
Rated Input 2 mA(AC)
Rated Output 2 mA(AC)
Ratio 1000:1000 Ratio
Saturation voltage 0.6 (RL=300Ω) V
Phase Difference ≤ 20 ＇ (RL=50Ω) Min
Linear Range 0-1000V 0-10mA (RL=50Ω) /
Linearity Degree 0.002 %
DC Resistance 80±15Ω Ω
Net weight 8.3 g
Dimension Tolerance 0.5 mm
Application Primary current flows into the transformer from terminal 1, while secondary winding current flows into the external circuit from terminal 4.


Flame Retardant Properties: Complies with UL94-V0
Insulation Resistance: Greater than 1000MΩ under normal conditions
Voltage Rating: 0.66/0.72KV
Withstand Voltage: 3KV/50Hz/1min
Operating Frequency: 50/60Hz
Operating Temperature: -40℃ to +70℃
Sealing Material: Epoxy Resin
Installation Method: Terminals 1 and 2 are input terminals; Terminals 3 and 4 are output terminals











Voltage——Precision Voltage Transformer






ZH-GL-PT01B Series Precision Voltage Transformers

ZH-GL-PT01B Unit
Rated Input 2 mA(AC)
Rated Output 2 mA(AC)
Ratio 1000:1000 Ratio
Saturation voltage 0.6 (RL=300Ω) V
Phase Difference ≤ 20 ＇ (RL=50Ω) Min
Linear Range 0-1000V 0-10mA (RL=50Ω) /
Linearity Degree 0.002 %
DC Resistance 80±15Ω Ω
Net weight 8.3 g
Dimension Tolerance 0.5 mm
Application Primary current flows into the transformer from terminal 1, while secondary winding current flows into the external circuit from terminal 4.


Flame Retardant Properties: Complies with UL94-V0
Insulation Resistance: Greater than 1000MΩ under normal conditions
Voltage Rating: 0.66/0.72KV
Withstand Voltage: 3KV/50Hz/1min
Operating Frequency: 50/60Hz
Operating Temperature: -40℃ to +70℃
Sealing Material: Epoxy Resin
Installation Method: Terminals 1 and 2 are input terminals; Terminals 3 and 4 are output terminals









Voltage——Precision Voltage Transformer






ZH-GL-PT02B Series Precision Voltage Transformers

ZH-GL-PT02B Unit
Rated Input 2 mA(AC)
Rated Output 2 mA(AC)
Ratio 1000:1000 Ratio
Saturation voltage 1 (RL=500Ω) V
Phase Difference ≤ 15 ＇ (RL=100Ω) Min
Linear Range 0-1000V 0-10mA (RL=100Ω) /
Linearity Degree 0.001 %
DC Resistance 107±10Ω Ω
Net weight 13.6 g
Dimension Tolerance 0.5 mm
Application The primary current flows into the transformer from terminal 1, while the secondary winding current flows into the external circuit from terminal 3.


Flame Retardant Properties: Complies with UL94-V0
Insulation Resistance: Greater than 1000MΩ under normal conditions
Voltage Rating: 0.66/0.72KV
Withstand Voltage: 3KV/50Hz/1min
Operating Frequency: 50/60Hz
Operating Temperature: -40℃ to +70℃
Sealing Material: Epoxy Resin
Installation Method: Terminals 1 and 2 are input terminals; Terminals 3 and 4 are output terminals













Voltage——Precision Voltage Transformer






ZH-GL-PT02B Series Precision Voltage Transformers

ZH-GL-PT02D Unit
Rated Input 2 mA(AC)
Rated Output 2 mA(AC)
Ratio 1500:1500 Ratio
Saturation voltage 4 (RL=2KΩ) V
Phase Difference ≤ 15 ＇ (RL=100Ω) Min
Linear Range 0-1000V 0-10mA (RL=100Ω) /
Linearity Degree 0.001 %
DC Resistance 247±30Ω Ω
Net weight 14.5 g
Dimension Tolerance 0.5 mm
Application Primary current flows into the transformer from P1, while secondary winding current flows into the external circuit from S1. /


Flame Retardant Properties: Complies with UL94-V0
Insulation Resistance: Greater than 1000MΩ under normal conditions
Voltage Rating: 0.66/0.72KV
Withstand Voltage: 3KV/50Hz/1min
Operating Frequency: 50/60Hz
Operating Temperature: -40℃ to +70℃
Sealing Material: Epoxy Resin
Installation Method: Terminals 1 and 2 are input terminals; Terminals 3 and 4 are output terminals








Voltage——Precision Voltage Transformer






ZH-GL-PT02F Series Precision Voltage Transformers

ZH-GL-PT02F Unit
Rated Input 2 mA(AC)
Rated Output 2 mA(AC)
Ratio 1500:1500 Ratio
Saturation voltage 4 (RL=2KΩ) V
Phase Difference ≤ 15 ＇ (RL=100Ω) Min
Linear Range 0-1000V 0-10mA (RL=100Ω) /
Linearity Degree 0.001 %
DC Resistance 247±30Ω Ω
Net weight 15.3 g
Dimension Tolerance 0.5 mm
Application Primary current flows into the transformer from P1, while secondary winding current flows into the external circuit from S1.


Flame Retardant Properties: Complies with UL94-V0
Insulation Resistance: Greater than 1000MΩ under normal conditions
Voltage Rating: 0.66/0.72KV
Withstand Voltage: 3KV/50Hz/1min
Operating Frequency: 50/60Hz
Operating Temperature: -40℃ to +70℃
Sealing Material: Epoxy Resin
Installation Method: Terminals 1 and 2 are input terminals; Terminals 3 and 4 are output terminals














Voltage——Precision Voltage Transformer






ZH-GL-PT03A Series Precision Voltage Transformers

ZH-GL-PT03A Unit
Rated Input 2 mA(AC)
Rated Output 2 mA(AC)
Ratio 1000:1000 Ratio
Saturation voltage 0.4 (RL=200Ω) V
Phase Difference ≤ 30 ＇ (RL=50Ω) Min
Linear Range 0-1000V 0-10mA (RL=50Ω) /
Linearity Degree 0.002 %
DC Resistance 102±15Ω Ω
Net weight 7.8 g
Dimension Tolerance 0.5 mm
Application Primary current flows into the transformer from P1, while secondary winding current flows into the external circuit from S1.


Flame Retardant Properties: Complies with UL94-V0
Insulation Resistance: Greater than 1000MΩ under normal conditions
Voltage Rating: 0.66/0.72KV
Withstand Voltage: 3KV/50Hz/1min
Operating Frequency: 50/60Hz
Operating Temperature: -40℃ to +70℃
Sealing Material: Epoxy Resin
Installation Method: Terminals 1 and 2 are input terminals; Terminals 3 and 4 are output terminals









Voltage——Precision Voltage Transformer






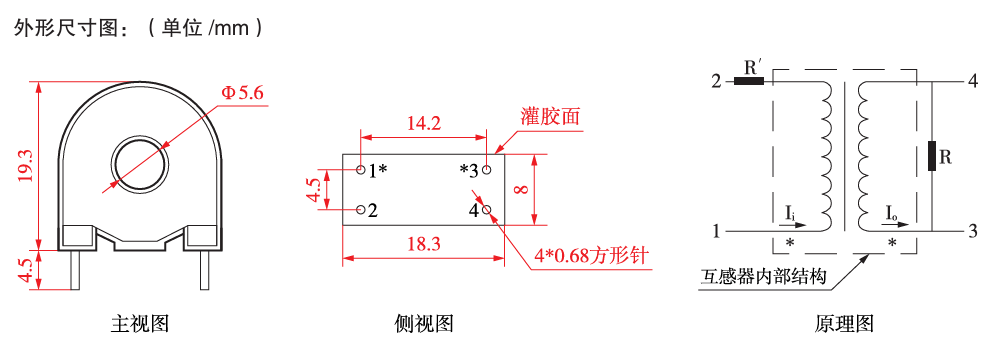

ZH-GL-PT04A Series Precision Voltage Transformers

ZH-GL-PT04A Unit
Rated Input 2 mA(AC)
Rated Output 2 mA(AC)
Ratio 1000:1000 Ratio
Saturation voltage 0.4 (RL=200Ω) V
Phase Difference ≤ 30 ＇ (RL=50Ω) Min
Linear Range 0-1000V 0-8mA (RL=50Ω) /
Linearity Degree 0.005 %
DC Resistance 64±10Ω Ω
Net weight 5.1 g
Dimension Tolerance 0.5 mm
Application The primary current flows into the transformer from terminal 1, while the secondary winding current flows into the external circuit from terminal 3.



Flame Retardant Properties: Complies with UL94-V0
Insulation Resistance: Greater than 1000MΩ under normal conditions
Voltage Rating: 0.66/0.72KV
Withstand Voltage: 3KV/50Hz/1min
Operating Frequency: 50/60Hz
Operating Temperature: -40℃ to +70℃
Sealing Material: Epoxy Resin
Installation Method: Terminals 1 and 2 are input terminals; Terminals 3 and 4 are output terminals


Previous : Residual Current Transformer (RCT) - Solid-Core Type Next : Base-Mounted Miniature Current Transformer
Miniature Precision Voltage Transformer
Utilizes high-stability magnetic cores and precision winding technology to achieve accurate voltage conversion and isolation in a compact size. Suitable for energy metering, relay protection, and precision instrument power supply, it offers excellent temperature characteristics and long-term stability, meeting demanding industrial and laboratory requirements.
