ZH-JCT Series - Split-Core Current Transformer
The ZH-JCT Series Split-Core Current Transformer features an open-core design for easy installation and removal without disconnecting cables. It is widely used for current measurement and protection in electricity meters, AC motors, lighting, HVAC systems, and building energy management.
Product Overview:
The ZH-JCT Series Split-Core Current Transformer adopts an open-core design, enabling quick and convenient installation and removal without the need to disconnect the measured cable. It is commonly used for current metering, measurement, and protection in devices such as electricity meters, AC motors, lighting equipment, and air conditioning compressors, and is suitable for energy management and control systems in buildings.
Product features:
- Easy Installation
Wide-opening angle for convenient cable placement, allowing quick one-click closure to complete installation. - Enhanced Protection
Upgraded enclosed housing design fully encapsulates the core, eliminating external exposure for improved safety and durability. - High-Performance Core Options
Available with high-conductivity nickel steel core or nanocrystalline materials for superior magnetic performance. - Customizable Winding
Wound with thick enameled copper wire; standard wire length provided, with optional extensions available upon request.

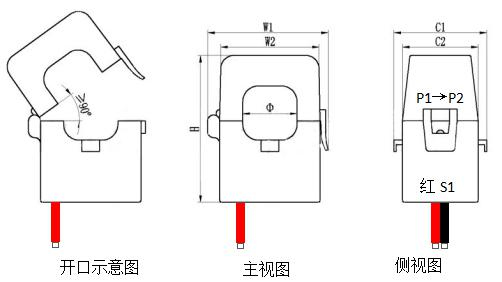

ZH-JCT24K Dimensions:
| Dimensional units(mm) | Φ | H | W1 | W2 | C1 | C2 |
| 10 | 41.1 | 29.6 | 23 | -- | 26.2 | |
| 16 | 47.3 | 36.3 | 30 | -- | 32.5 | |
| 24 | 65 | 53.3 | 43.5 | 41.3 | 33.8 | |
| 36 | 86 | 67.5 | 58 | 50.5 | 42.8 | |
| 50 | 114.4 | 87 | 74.5 | 57.8 | 47.1 | |
ZH-JCT10K Dimensions: |
||||||
| Dimensional units(mm) | Φ | H | W1 | W2 | C1 | C2 |
| mm | 10 | 41.1 | 29.6 | 23 | -- | 26.2 |
| Specifications | Rated Load | Measuring Range | Accuracy | Voltage Level | ||
| 1000/1 | 20Ω | 0-60A | 0.50% | 0.66KV | ||
| Jan-00 | 20Ω | 0-60A | 0.50% | 0.66KV | ||
| Jan-00 | 20Ω | 0-80A | 0.50% | 0.66KV | ||
| INPUT | Rated Output | Rated Capacity | Accuracy | Overload Rating | Voltage Level | Compressive Strength |
| 100A | 5A | 0.1VA | 1.00% | 1.2 times | 0.72KV | 3KV |
| 150A | 5A | 0.1VA | 1.00% | 1.2 times | 0.72KV | 3KV |
| 200A | 5A | 0.1VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| 250A | 5A | 1VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| 300A | 5A | 1VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| 350A | 5A | 1VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| 400A | 5A | 1VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| ZH-JCT16K Dimensions: | ||||||
| Dimensional units | Φ | H | W1 | W2 | C1 | C2 |
| mm | 16 | 47.3 | 36.3 | 30 | -- | 32.5 |
| INPUT | Rated Output | Rated Capacity | Accuracy | Overload Rating | Voltage Level | Compressive Strength |
| 100A | 5A | 0.1VA | 1.00% | 1.2 times | 0.72KV | 3KV |
| 150A | 5A | 0.1VA | 1.00% | 1.2 times | 0.72KV | 3KV |
| ZH-JCT36K Dimensions: | ||||||
| Dimensional units | Φ | H | W1 | W2 | C1 | C2 |
| mm | 36 | 86 | 67.5 | 58 | 50.5 | 42.8 |
| INPUT | Rated Output | Rated Capacity | Accuracy | Overload Rating | Voltage Level | Compressive Strength |
| 100A | 5A | 0.5VA | 1.00% | 1.2 times | 0.72KV | 2KV |
| 200A | 5A | 1.0VA | 0.50% | 1.2 times | 0.72KV | 2KV |
| 300A | 5A | 1.5VA | 0.50% | 1.2 times | 0.72KV | 2KV |
| 400A | 5A | 2VA | 0.50% | 1.2 times | 0.72KV | 2KV |
| 500A | 5A | 2VA | 0.50% | 1.2 times | 0.72KV | 2KV |
| 600A | 5A | 2.5VA | 0.50% | 1.2 times | 0.72KV | 2KV |
| ZH-JCT50K Dimensions: | ||||||
| Unit Of Size | Φ | H | W1 | W2 | C1 | C2 |
| mm | 50 | 114.4 | 87 | 74.5 | 57.8 | 47.1 |
| INPUT | Rated Output | Rated Capacity | Accuracy | Overload Rating | Voltage Level | Compressive Strength |
| 300A | 5A | 2.5VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| 400A | 5A | 2.5VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| 500A | 5A | 2.5VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| 600A | 5A | 2.5VA | 0.50% | 1.2 times | 0.72KV | 3KV |
| 800A | 5A | 2.5VA | 0.20% | 1.2 times | 0.72KV | 3KV |
| 1000A | 5A | 5VA | 0.20% | 1.2 times | 0.72KV | 3KV |
